Aspect grid generated from 30 meter DEM for the HJ Andrews Experimental Forest

Raster Dataset

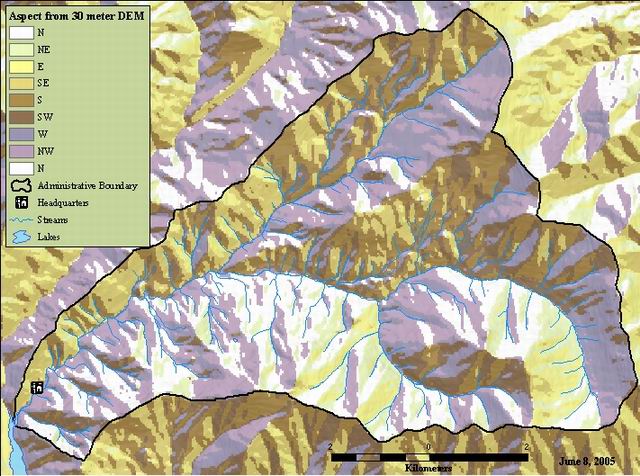

Thumbnail

Tags
Blue River Watershed, mapping, topography, HJ Andrews Experimental Forest, Oregon, aspect, Willamette Basin


Summary

To provide elevation information for use in GIS models.

Description

Aspect Grid generated from 30 Meter Digital Elevation Model (DEM) for the HJ Andrews Experimental Forest

Credits

Use limitations

While substantial efforts are made to ensure the accuracy of data and documentation, complete accuracy of data sets cannot be guaranteed. All data are made available "as is". The Andrews LTER shall not be liable for damages resulting from any use or misinterpretation of data sets.

Extent

West  -122.269593    East  -122.096254
North  44.286492    South  44.192359

Scale Range
Maximum (zoomed in)  1:5,000
Minimum (zoomed out)  1:150,000,000

ArcGIS Metadata

Topics and Keywords

*Content type  Downloadable Data


Place keywords  Blue River Watershed, HJ Andrews Experimental Forest, Oregon, Willamette Basin

Theme keywords  mapping, topography, aspect

Thesaurus
Title Andrews Forest LTER Thesaurus




Citation

Title Aspect grid generated from 30 meter DEM for the HJ Andrews Experimental Forest
Creation date 1998-05-26 00:00:00
Publication date 1999-03-17 00:00:00


Edition 1


Presentation formats  digital map


Other citation details gi00206


Citation Contacts

Responsible party
Organization's name Forest Science Data Bank
Contact's role  publisher


Contact information
Address
Delivery point Corvallis, OR



Responsible party
Individual's name Hazel Hammond
Organization's name Corvallis Forest Science Laboratory
Contact's position Programmer
Contact's role  originator


Responsible party
Individual's name Theresa Valentine
Organization's name Corvallis Forest Science Laboratory
Contact's position Spatial Information Manager
Contact's role  point of contact


Contact information
Phone
Voice 541-750-7333
Fax 541-758-7760

Address
Type both
Delivery point 3200 SW Jefferson Way
City Corvallis
Administrative area Oregon
Postal code 97332
Country US
e-mail addresstvalentine@fs.fed.us or theresa.valentine@orst.edu

Hours of service m-f 8:00am-4:00pm


Resource Details

Dataset languages  English (UNITED STATES)
Dataset character set  utf8 - 8 bit UCS Transfer Format


Status  completed
Spatial representation type  grid


*Processing environment Microsoft Windows 7 Version 6.1 (Build 7601) Service Pack 1; Esri ArcGIS 10.1.1.3143


ArcGIS item properties
*Name hjaasp30
*Location file://J:\hja83\hjaasp30
*Access protocol Local Area Network

Extents

Extent
Description
ground condition
Geographic extent
Bounding rectangle
Extent type  Extent used for searching
*West longitude -122.269593
*East longitude -122.096254
*North latitude 44.286492
*South latitude 44.192359
*Extent contains the resource Yes

Temporal extent
Date and time 1998-05-26 00:00:00

Extent in the item's coordinate system
*West longitude 558369.033621
*East longitude 572109.033621
*South latitude 4893633.875562
*North latitude 4903953.875562
*Extent contains the resource Yes

Resource Points of Contact

Point of contact
Individual's name Theresa Valentine
Organization's name Corvallis Forest Science Laboratory
Contact's position Spatial Information Manager
Contact's role  point of contact


Contact information
Phone
Voice 541-750-7333
Fax 541-750-7760

Address
Type both
Delivery point 3200 SW Jefferson Way
City Corvallis
Administrative area Oregon
Postal code 97332
Country US
e-mail addresstvalentine@fs.fed.us or theresa.valentine@orst.edu

Hours of service m-f 0800-1630


Resource Maintenance

Resource maintenance
Update frequency  as needed


Resource Constraints

Legal constraints
Access constraints  other restrictions


Other constraints
Access constraints: Available on-line
Legal constraints
Use constraints  other restrictions


Other constraints
Use constraints: See data access policy at www.fsl.orst.edu/lter (especially the data use policy)
Security constraints
Classification  unclassified


Constraints
Limitations of use
While substantial efforts are made to ensure the accuracy of data and documentation, complete accuracy of data sets cannot be guaranteed. All data are made available "as is". The Andrews LTER shall not be liable for damages resulting from any use or misinterpretation of data sets.

Spatial Reference

ArcGIS coordinate system
*Type Projected
*Geographic coordinate reference GCS_North_American_1983
*Projection NAD_1983_UTM_Zone_10N
*Coordinate reference details
Projected coordinate system
Well-known identifier 26910
X origin -5120900
Y origin -9998100
XY scale 450445547.3910538
Z origin -100000
Z scale 10000
M origin -100000
M scale 10000
XY tolerance 0.001
Z tolerance 0.001
M tolerance 0.001
High precision true
Latest well-known identifier 26910
Well-known text PROJCS["NAD_1983_UTM_Zone_10N",GEOGCS["GCS_North_American_1983",DATUM["D_North_American_1983",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",500000.0],PARAMETER["False_Northing",0.0],PARAMETER["Central_Meridian",-123.0],PARAMETER["Scale_Factor",0.9996],PARAMETER["Latitude_Of_Origin",0.0],UNIT["Meter",1.0],AUTHORITY["EPSG",26910]]

Reference system identifier
Value 26910
*Codespace EPSG
*Version 7.11.2


Spatial Data Properties

Georectified Grid
*Number of dimensions 2


Axis dimensions properties
Dimension type  column (x-axis)
*Dimension size 458
*Resolution  30.000000 Meter

Axis dimensions properties
Dimension type  row (y-axis)
*Dimension size 344
*Resolution  30.000000 Meter

*Cell geometry  area
*Point in pixel  center


*Transformation parameters are available Yes


*Check points are available No


Corner points
*Point 558369.033621 4893633.875562
*Point 558369.033621 4903953.875562
*Point 572109.033621 4903953.875562
*Point 572109.033621 4893633.875562

*Center point 565239.033621 4898793.875562




ArcGIS Raster Properties
General Information
*Pixel depth 32
*Compression type None
*Number of bands 1
*Raster format GRID
*Source type continuous
*Pixel type floating point
*No data value -3.4028235e+038
*Has colormap No
*Has pyramids Yes




Spatial Data Content

Image Description
*Type of information  physical measurement
Attribute described by cell values aspect


Band information
*Description Band_1
*Maximum value 359.807098
*Minimum value -1.000000
Units
*Symbol Meter

*Number of bits per value 32


Image quality code
Value none


Processing level code
Value none


Triangulation has been performed No
Radiometric calibration is available No
Camera calibration is available No
Film distortion information is available No
Lens distortion information is available No


Data Quality

Lineage

Process step
When the process occurred 1998-05-26 00:00:00
Description The Grid function ASPECT was used on the HJA 30 meter DEM optained from USFS Geometronics Service Center.


Process contact
Individual's name Hazel Hammond
Organization's name Corvallis Forest Science Laboratory
Contact's position Programmer
Contact's role  processor




Process step
When the process occurred 2011-06-15 00:00:00
Description projected from NAD27 to NAD83
Rationale to meet requirements of US Forest Service


Process contact
Individual's name Theresa Valentine
Organization's name Corvallis Forest Science Laboratory
Contact's position Spatial Information Manager
Contact's role  processor


Contact information
Phone
Voice 541-750-7333
Fax 541-758-7760

Address
Type both
Delivery point 3200 SW Jefferson Way
City Corvallis
Administrative area Oregon
Postal code 97332
Country US
e-mail addresstvalentine@fs.fed.us or theresa.valentine@orst.edu

Hours of service m-f 8:00am-4:00pm




Source data
Description USFS Geometronics Service Center, gi00201- 30 Meter Digital Elevation Model (DEM) for the HJ Andrews Experimental Forest


Resolution of the source data



Geoprocessing history

Process
Process name
Date 2011-06-15 16:53:37
Tool location C:\Program Files\ArcGIS\Desktop10.0\ArcToolbox\Toolboxes\Data Management Tools.tbx\ProjectRaster
Command issued
ProjectRaster J:\hja27\hjaasp J:\hja83\hjaasp PROJCS['NAD_1983_UTM_Zone_10N',GEOGCS['GCS_North_American_1983',DATUM['D_North_American_1983',SPHEROID['GRS_1980',6378137.0,298.257222101]],PRIMEM['Greenwich',0.0],UNIT['Degree',0.0174532925199433]],PROJECTION['Transverse_Mercator'],PARAMETER['False_Easting',500000.0],PARAMETER['False_Northing',0.0],PARAMETER['Central_Meridian',-123.0],PARAMETER['Scale_Factor',0.9996],PARAMETER['Latitude_Of_Origin',0.0],UNIT['Meter',1.0]] NEAREST 30 NAD_1927_To_NAD_1983_NADCON # PROJCS['NAD_1927_UTM_Zone_10N',GEOGCS['GCS_North_American_1927',DATUM['D_North_American_1927',SPHEROID['Clarke_1866',6378206.4,294.9786982]],PRIMEM['Greenwich',0.0],UNIT['Degree',0.0174532925199433]],PROJECTION['Transverse_Mercator'],PARAMETER['False_Easting',500000.0],PARAMETER['False_Northing',0.0],PARAMETER['Central_Meridian',-123.0],PARAMETER['Scale_Factor',0.9996],PARAMETER['Latitude_Of_Origin',0.0],UNIT['Meter',1.0]],VERTCS['Unknown VCS',VDATUM['Unknown'],PARAMETER['Vertical_Shift',0.0],PARAMETER['Direction',1.0],UNIT['Meter',1.0]]
Include in lineage when exporting metadata No


Distribution

Distributor
Contact information
Individual's name Theresa Valentine
Organization's name Corvallis Forest Science Laboratory
Contact's position Spatial Information Manger
Contact's role  distributor


Contact information
Phone
Voice 541-750-7333
Fax 541-758-7760

Address
Type both
Delivery point 3200 SW Jefferson Way
City Corvallis
Administrative area OR
Postal code 97332
Country US
e-mail addresstvalentine@fs.fed.us or theresa.valentine@orst.edu

Hours of service m-f 8:00am-4:30pm


Ordering process
Terms and fees none
Turnaround time as time permits
Instructions
Obtain information off of WWW site, call contact person for special requests.

Ordering process
Instructions
Call contact person for instructions and costs.



Distribution format
*Name Raster Dataset
Version arcgis 10.1


Transfer options
Online source
Locationhttp://andrewsforest.oregonstate.edu/data/studies/spatialdata/gi00206.zip
Access protocol zip file
Function performed  download

Transfer options
Online source
Locationhttp://www.fsl.orst.edu/lter/data/spatialcatalog.cfm?topnav=160

Fields

Details for object hjaasp30
Type raster
Definition
aspect in degrees
Definition source
fsl metadata document


Field value

Data type float
Width 32
Field description
aspect in degrees
Description source
fsl metadata document
Description of values computer generated number






Metadata Details

*Metadata language English (UNITED STATES)
Metadata character set  utf8 - 8 bit UCS Transfer Format


Scope of the data described by the metadata  dataset
Scope name* dataset


*Last update 2014-01-08


ArcGIS metadata properties
Metadata format ArcGIS 1.0
Standard or profile used to edit metadata FGDC


Created in ArcGIS for the item 2003-01-09 14:46:32
Last modified in ArcGIS for the item 2014-01-08 92:90:60


Automatic updates
Have been performed Yes
Last update 2014-01-08 09:26:42

ArcGIS metadata identifier {1C255B2B-28D9-44CF-90E9-F90288171E10}
Published to an ArcIMS Metadata Service Published



Metadata Contacts

Metadata contact
Individual's name Theresa Valentine
Organization's name Corvallis Forest Science Laboratory
Contact's position Spatial Information Manager
Contact's role  point of contact


Contact information
Phone
Voice 541-750-7333
Fax 541-758-7760

Address
Type both
Delivery point 3200 SW Jefferson Way
City Corvallis
Administrative area Oregon
Postal code 97332
Country US
e-mail addresstvalentine@fs.fed.us or theresa.valentine@orst.edu

Hours of service m-f 8:00am-4:00pm


Metadata Maintenance

Maintenance
Update frequency  not planned


Metadata Constraints

Security constraints
Classification  unclassified


Thumbnail and Enclosures

Thumbnail
Thumbnail type  JPG

Enclosure
Enclosure type  File
Description of enclosure original metadata
Original metadata document, which was translated yes
Source metadata format fgdc

FGDC Metadata (read-only)

Identification

Citation
Citation Information
OriginatorHazel Hammond
Publication Date05/26/1998
Title
Aspect grid generated from 30 meter DEM for the HJ Andrews Experimental Forest
Edition1
Geospatial Data Presentation Formraster digital data
Publication Information
Publication PlaceCorvallis, OR
PublisherForest Science Data Bank
Other Citation Details
hjaasp
Online Linkagehttp://www.fsl.orst.edu/lter/data/spatialcatalog.cfm?topnav=160

Description
Abstract
Aspect Grid generated from 30 Meter Digital Elevation Model (DEM) for the HJ Andrews Experimental Forest
Purpose
To provide elevation information for use in GIS models.
Time Period of Content
Time Period Information
Single Date/Time
Calendar Dateunknown
Currentness Reference
ground condition
Status
ProgressComplete
Maintenance and Update FrequencyAs needed

Spatial Domain
Bounding Coordinates
West Bounding Coordinate-122.268408
East Bounding Coordinate-122.095451
North Bounding Coordinate44.286643
South Bounding Coordinate44.192780

Keywords
Theme
Theme Keywordmapping
Theme Keywordtopography
Theme Keywordaspect

Place
Place KeywordOregon
Place KeywordWillamette Basin
Place KeywordBlue River Watershed
Place KeywordHJ Andrews Experimental Forest

Access Constraints
Available on-line
Use Constraints
See data access policy at www.fsl.orst.edu/lter (especially the data use policy)
Point of Contact
Contact Information
Contact Person Primary
Contact PersonTheresa Valentine
Contact OrganizationCorvallis Forest Science Laboratory
Contact PositionSpatial Information Manager
Contact Address
Address Typemailing and physical address
Address3200 SW Jefferson Way
CityCorvallis
State or ProvinceOregon
Postal Code97332
CountryUNITED STATES

Contact Voice Telephone541-750-7333
Contact Facsimile Telephone541-750-7760
Contact Electronic Mail Addresstvalentine@fs.fed.us or theresa.valentine@orst.edu
Hours of Servicem-f 0800-1630

Security Information
Security ClassificationUnclassified

Native Data Set Environment
Microsoft Windows XP Version 5.1 (Build 2600) Service Pack 2; ESRI ArcCatalog 9.2.4.1420

Data Quality

Logical Consistency Report
Good
Lineage
Source Information
Source Scale Denominator30 meter
Type of Source Mediastable-base material
Source Time Period of Content
Source Currentness Reference
ground condition
Source Contribution
USFS Geometronics Service Center
Process Step
Process Description
The Grid function ASPECT was used on the HJA 30 meter DEM optained from USFS Geometronics Service Center.
Process Date05/26/1998


Spatial Data Organization

Direct Spatial Reference MethodRaster


Raster Object Information
Raster Object TypeGrid Cell
Row Count343
Column Count457
Vertical Count1

Spatial Reference

Horizontal Coordinate System Definition
Planar
Planar Coordinate Information
Planar Coordinate Encoding Methodrow and column
Coordinate Representation
Abscissa Resolution30.000000
Ordinate Resolution30.000000
Planar Distance Unitsmeters

Geodetic Model
Horizontal Datum NameNorth American Datum of 1927
Ellipsoid NameClarke 1866
Semi-major Axis6378206.400000
Denominator of Flattening Ratio294.978698

Entities and Attributes

Detailed Description
Entity Type
Entity Type Labelhjaasp30
Entity Type Definition
aspect in degrees
Entity Type Definition Sourcefsl metadata document

Attribute
Attribute Labelvalue
Attribute Definition
aspect in degrees
Attribute Definition Sourcefsl metadata document
Attribute Domain Values
Unrepresentable Domain
computer generated number

Distribution Information

Distributor
Contact Information
Contact Person Primary
Contact PersonTheresa Valentine
Contact OrganizationCorvallis Forest Science Laboratory
Contact PositionSpatial Information Manger
Contact Address
Address Typemailing and physical address
Address3200 SW Jefferson Way
CityCorvallis
State or ProvinceOR
Postal Code97332
CountryUNITED STATES

Contact Voice Telephone541-750-7333
Contact Facsimile Telephone541-758-7760
Contact Electronic Mail Addresstvalentine@fs.fed.us or theresa.valentine@orst.edu
Hours of Servicem-f 8:00am-4:30pm

Resource DescriptionDownloadable Data
Distribution Liability
While substantial efforts are made to ensure the accuracy of data and documentation, complete accuracy of data sets cannot be guaranteed. All data are made available "as is". The Andrews LTER shall not be liable for damages resulting from any use or misinterpretation of data sets.
Standard Order Process
Digital Form
Digital Transfer Information
Format NameARCE
Transfer Size0.732

Digital Transfer Option
Online Option
Computer Contact Information
Network Address
Network Resource NameT:\gis\oregon\willamette\hjandrews\hjaasp

Feesnone
Ordering Instructions
Obtain information off of WWW site, call contact person for special requests.
Turnaroundas time permits


Custom Order Process
Call contact person for instructions and costs.


Metadata Reference

Metadata Date2008-02-07
Metadata Contact
Contact Information
Contact Person Primary
Contact PersonTheresa Valentine
Contact OrganizationCorvallis Forest Science Laboratory
Contact PositionSpatial Information Manager
Contact Address
Address Typemailing and physical address
Address3200 SW Jefferson Way
CityCorvallis
State or ProvinceOregon
Postal Code97332
CountryUNITED STATES

Contact Voice Telephone541-750-7333
Contact Facsimile Telephone541-758-7760
Contact Electronic Mail Addresstvalentine@fs.fed.us or theresa.valentine@orst.edu
Hours of Servicem-f 8:00am-4:00pm

Metadata Standard NameFGDC Content Standards for Digital Geospatial Metadata
Metadata Standard VersionFGDC-STD-001-1998
Metadata Time Conventionlocal time


Metadata Security Information
Metadata Security ClassificationUnclassified
